海思标压控制器6网2串16GPIO 海思标压控制器6网2串16GPIO

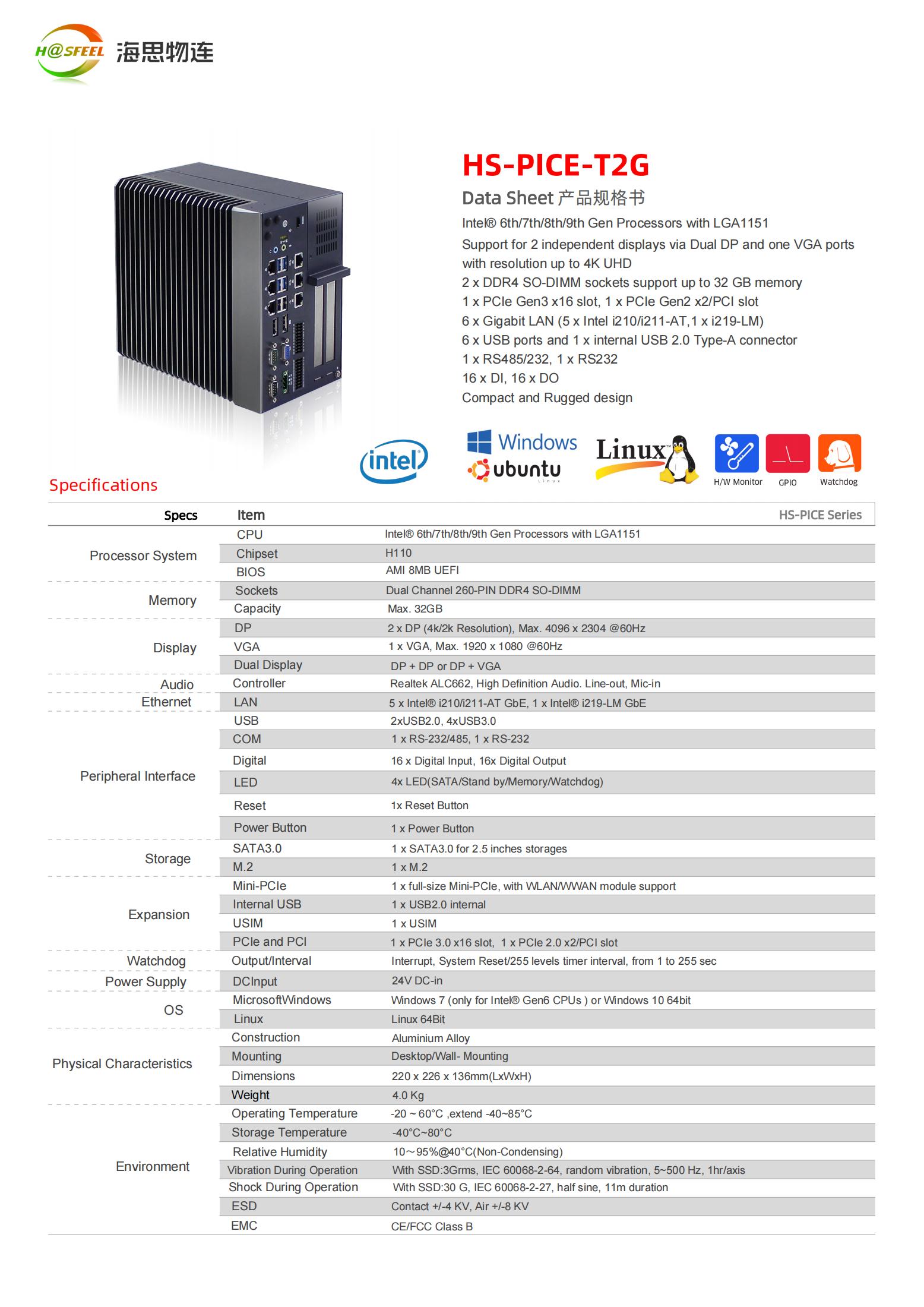

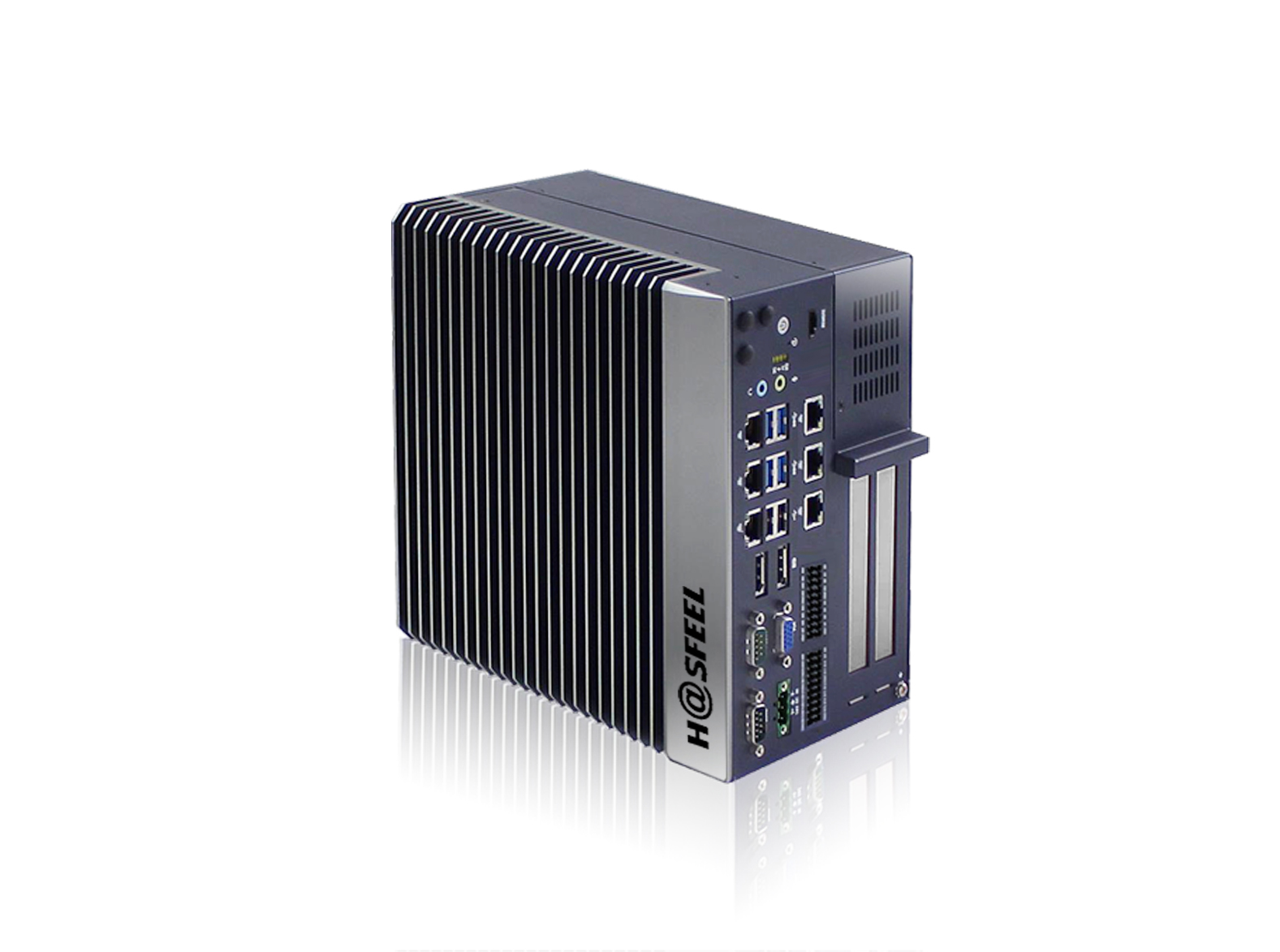

HS-PICE-T2G（intel H110）
• 产品特性：
• Intel 6th/7th/8th/9th Gen Processors with LGA1151
• Support for 2 independent displays via Dual DP and one VGA ports with resolution up to 4K UHD
• 2 x DDR4 SO-DIMM sockets support up to 32 GB memory
• 1 x PCIe Gen3 x16 slot, 1 x PCIe Gen2 x2/PCI slot
• 6 x Gigabit LAN (5 x Intel i210/i211-AT,1 x i219-LM)
• 6 x USB ports and 1 x internal USB 2.0 Type-A connector
• 1 x RS485/232, 1 x RS232
• 16 x DI, 16 x DO
• Compact and Rugged design
• Intel 6th/7th/8th/9th Gen Processors with LGA1151
• Support for 2 independent displays via Dual DP and one VGA ports with resolution up to 4K UHD
• 2 x DDR4 SO-DIMM sockets support up to 32 GB memory
• 1 x PCIe Gen3 x16 slot, 1 x PCIe Gen2 x2/PCI slot
• 6 x Gigabit LAN (5 x Intel i210/i211-AT,1 x i219-LM)
• 6 x USB ports and 1 x internal USB 2.0 Type-A connector
• 1 x RS485/232, 1 x RS232
• 16 x DI, 16 x DO
• Compact and Rugged design
