海思12-14代工控机3网6串8USB 海思12-14代工控机3网6串8USB

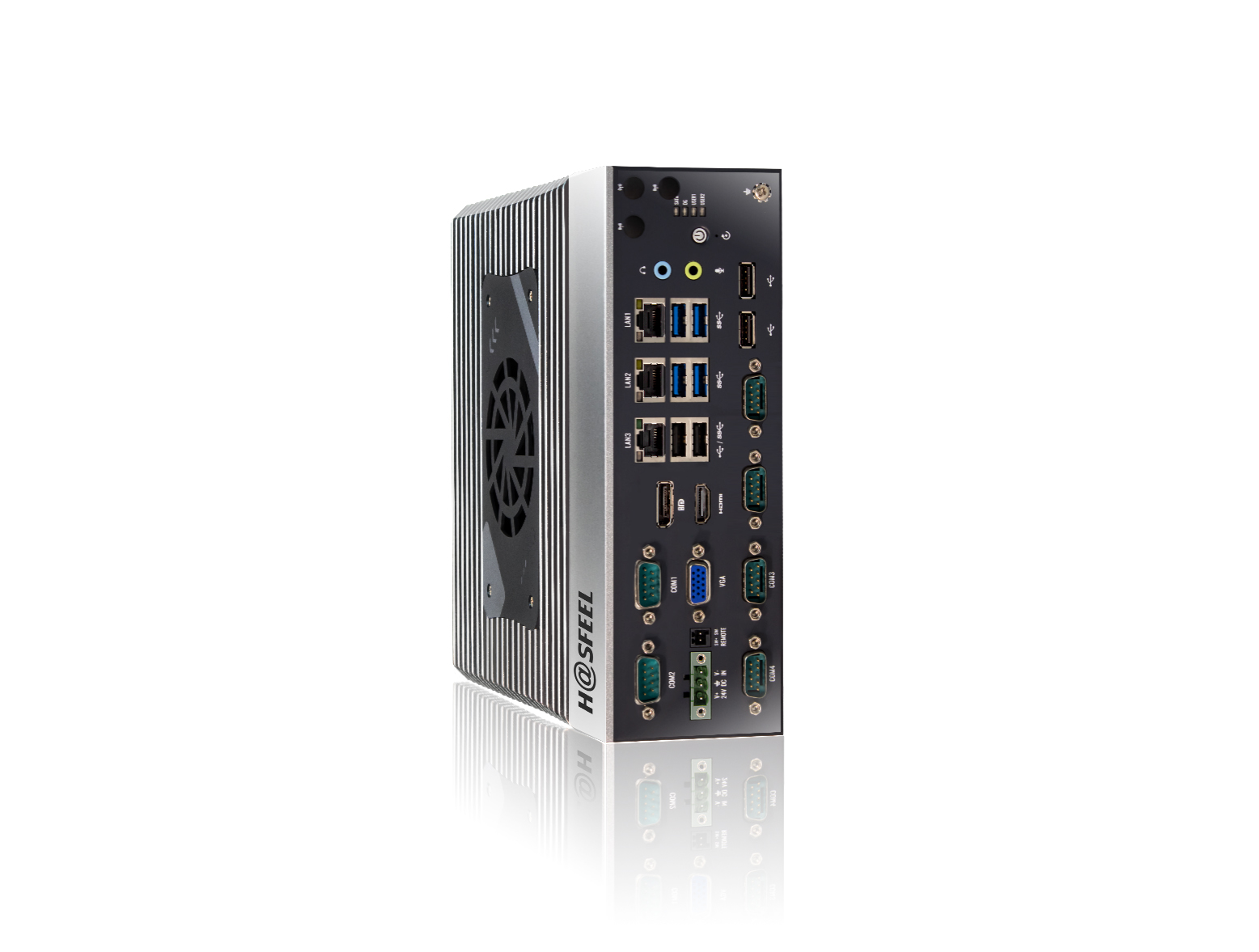

HS-PICE-3L14TC （Intel Raptor Lake）
• Intel 12-14th generation Core i3/i5/i7
• H610/H670/Q670 Chipset
• Dual Channel DDR5 up to 64GB
• 3xDisplays: DP, HDMI and VGA
• 3xLAN (2xIntel i210, 1xIntel i219)
• 1xRS-232/422/485, 3xRS-232/485, 2xRS-232
• 4xUSB3.0, 4xUSB2.0 (H610) or 6xUSB3.0, 2xUSB2.0 (H670/Q670)
• Support 4G/5G, Wi-Fi Module expansion
• DC-24V,Customizable UPS Module Expansion
• 220x226x75 mm (LxWxH), support Wall-mounting
• CE/FCC Class B, ESD 8KV/15KV
• Windows 10/11, Centos 8, Ubuntu 20.04/22.04/24.04
•
• H610/H670/Q670 Chipset
• Dual Channel DDR5 up to 64GB
• 3xDisplays: DP, HDMI and VGA
• 3xLAN (2xIntel i210, 1xIntel i219)
• 1xRS-232/422/485, 3xRS-232/485, 2xRS-232
• 4xUSB3.0, 4xUSB2.0 (H610) or 6xUSB3.0, 2xUSB2.0 (H670/Q670)
• Support 4G/5G, Wi-Fi Module expansion
• DC-24V,Customizable UPS Module Expansion
• 220x226x75 mm (LxWxH), support Wall-mounting
• CE/FCC Class B, ESD 8KV/15KV
• Windows 10/11, Centos 8, Ubuntu 20.04/22.04/24.04
•
