英特尔Alder Lake-P嵌入式4寸主板
英特尔Alder Lake-P嵌入式4寸主板 英特尔Alder Lake-P嵌入式4寸主板
40-AL2L2C（intel Alder Lake-P）
• Intel?12thGen Alder Lake-P platformCPU
• Dual Channel DDR4 3200 MT/s SO-DIMM, max. 64 GB memory

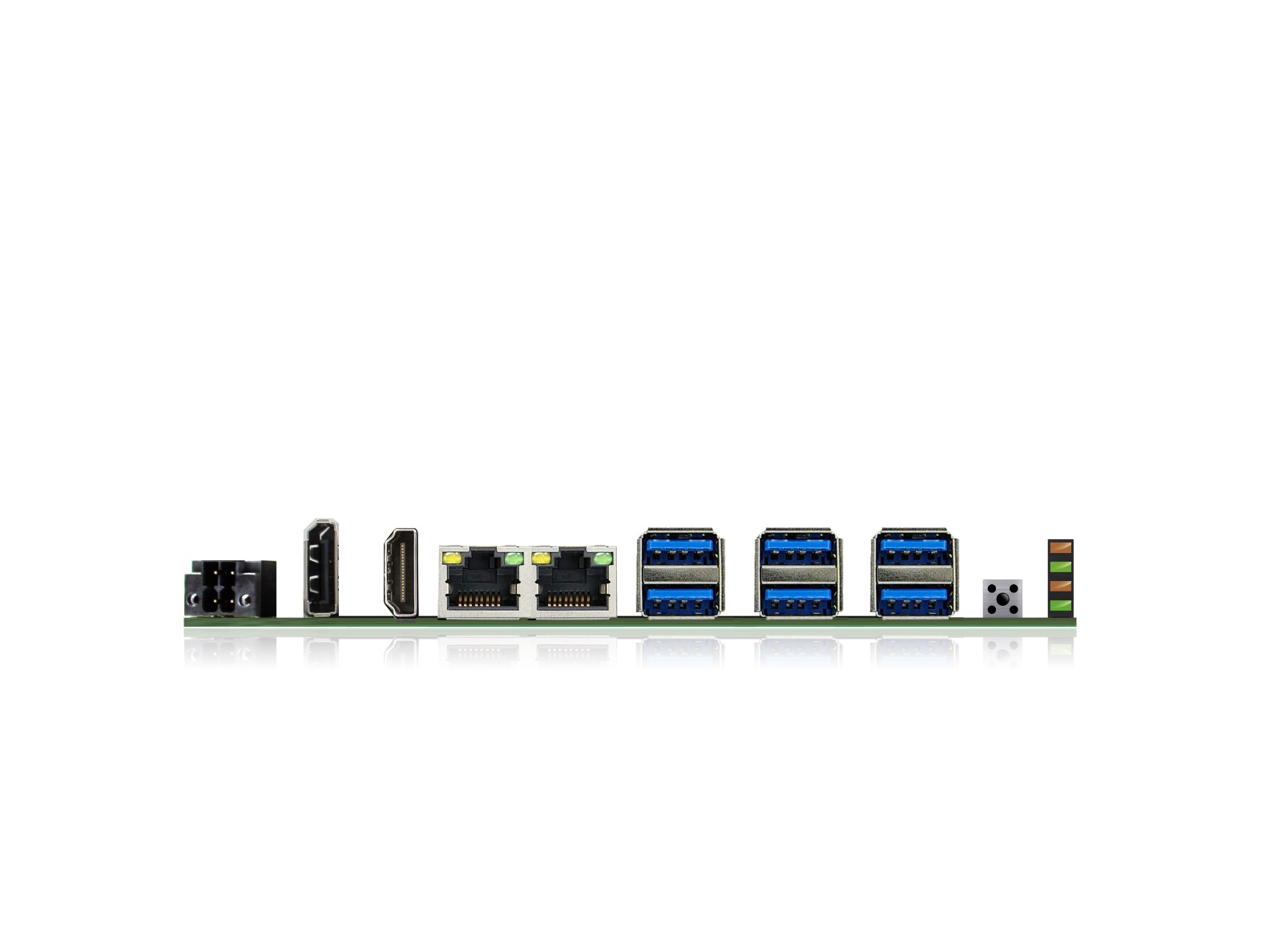

• 1 x DP, 1 x HDMI, 1 x eDP/LVDS
• 2 xIntel i210-ATGbE LAN
• 6 x USB 3.0, 3 x internal USB 2.0
• Support 1 x RS-232/422/485, 1 x RS-232 and 8-bit GPIO
• Support CANBus2.0 A/B, eSPIBus and SMBus
• 3 x M.2, 1 x SATA3.0, 1 x Nano SIM, 1 x BTB Connector
• Support Watchdog and TPM 2.0
• Dual Channel DDR4 3200 MT/s SO-DIMM, max. 64 GB memory
• 1 x DP, 1 x HDMI, 1 x eDP/LVDS
• 2 xIntel i210-ATGbE LAN
• 6 x USB 3.0, 3 x internal USB 2.0
• Support 1 x RS-232/422/485, 1 x RS-232 and 8-bit GPIO
• Support CANBus2.0 A/B, eSPIBus and SMBus
• 3 x M.2, 1 x SATA3.0, 1 x Nano SIM, 1 x BTB Connector
• Support Watchdog and TPM 2.0
