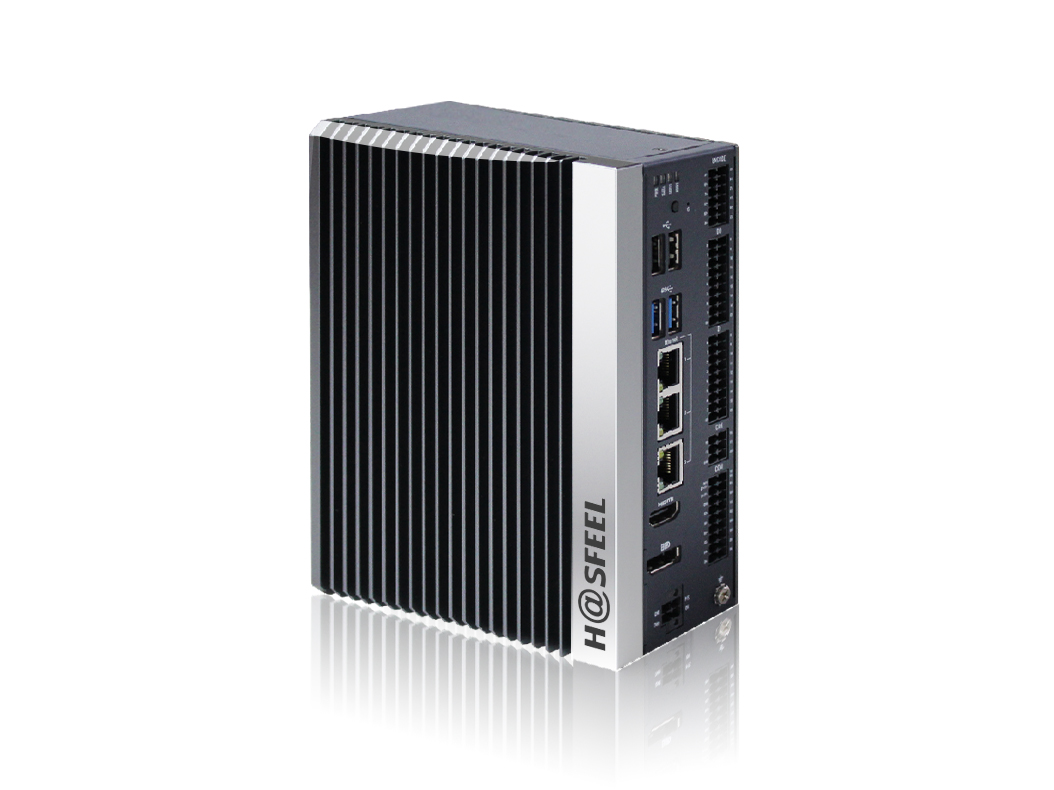

海思11代工控机3网6串GPIO
海思11代工控机3网6串GPIO 海思11代工控机3网6串GPIO

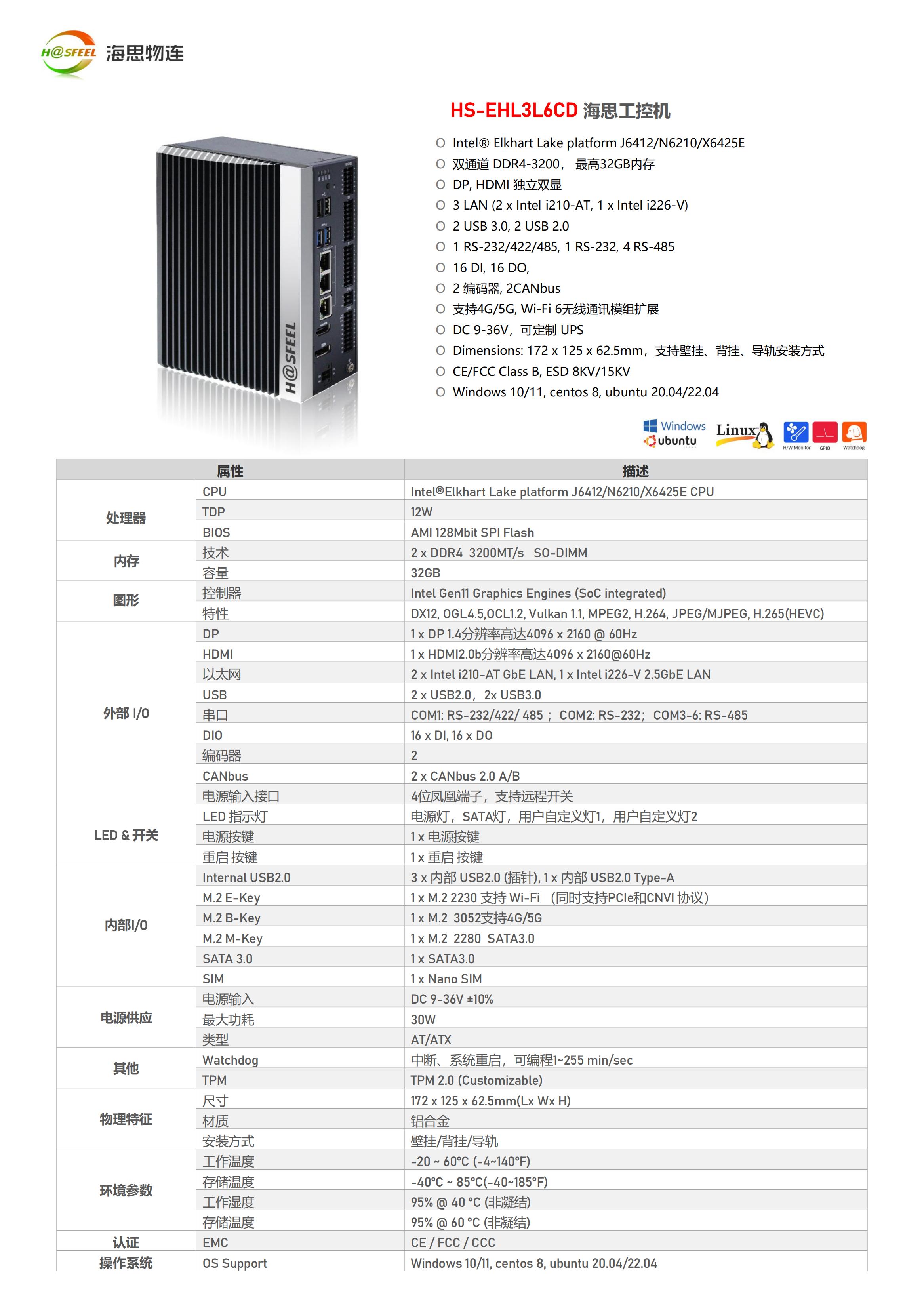

HS-EHL3L6C（intel J6412）GPIO
• Intel Elkhart Lake platform J6412/N6210/X6425E
• Dual channel DDR4-3200 up to 32GB
• 3 LAN (2xIntel i210-AT, 1xIntel i226-V)
• 6 COM
• 2 USB 3.0, 2 USB 2.0
• 16 DI, 16 DO, 2 Encode
• Support UPS, 4G or 5G, Wi-Fi
• 172 x 125 x 62.5mm
• DC 9-36V
•
• Dual channel DDR4-3200 up to 32GB
• 3 LAN (2xIntel i210-AT, 1xIntel i226-V)
• 6 COM
• 2 USB 3.0, 2 USB 2.0
• 16 DI, 16 DO, 2 Encode
• Support UPS, 4G or 5G, Wi-Fi
• 172 x 125 x 62.5mm
• DC 9-36V
•
