Alder Lake-N嵌入式3.5寸主板

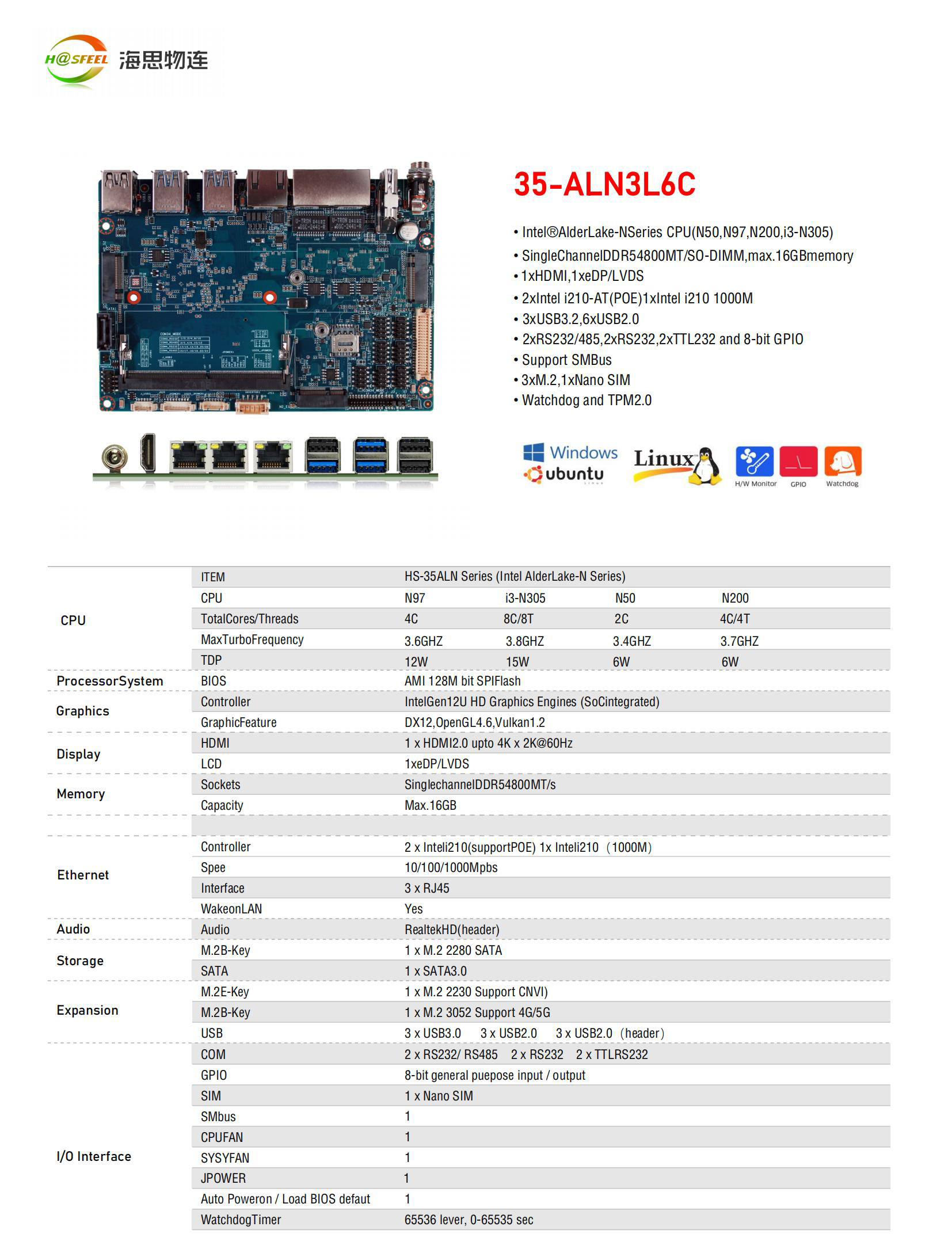

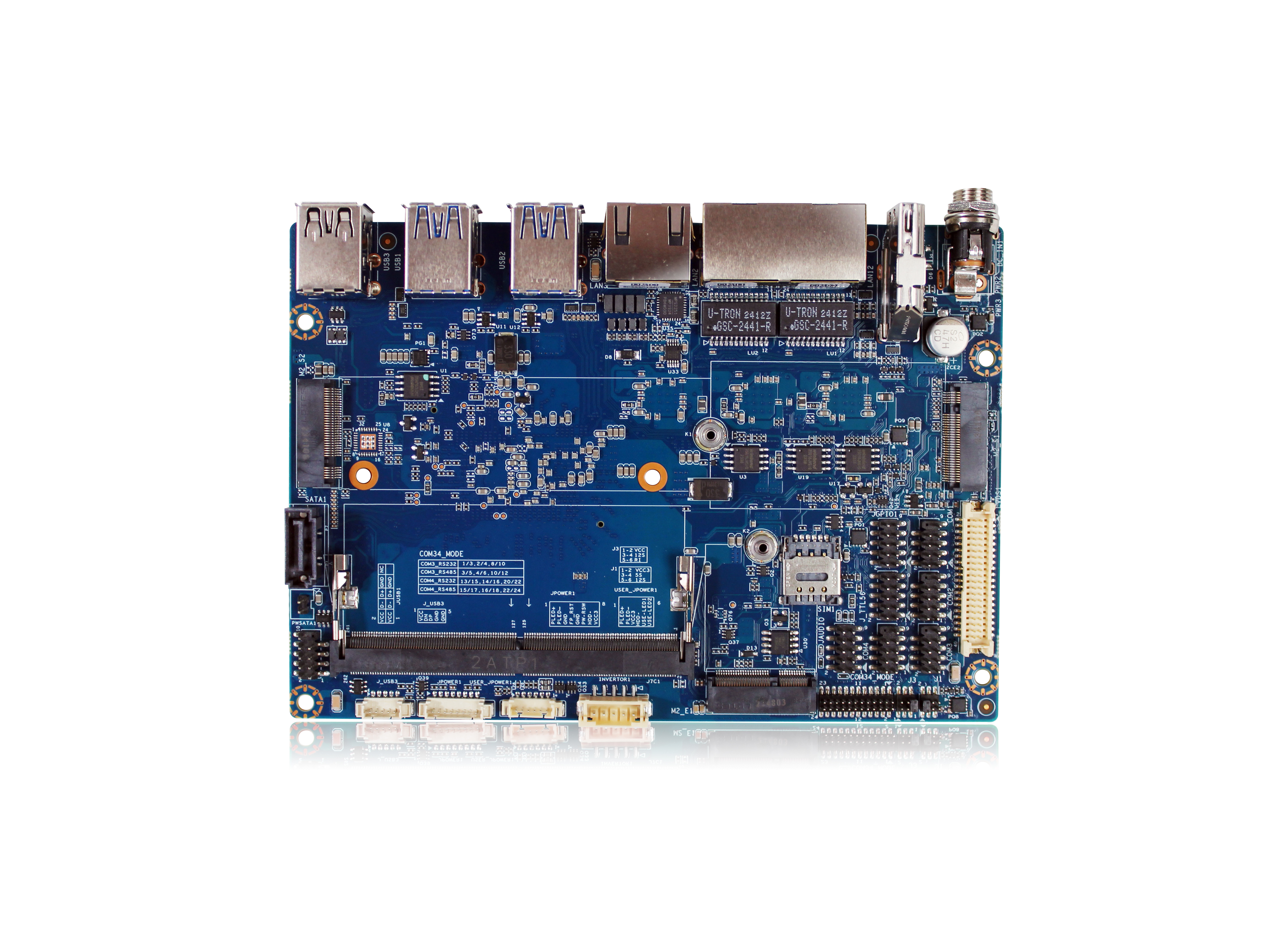

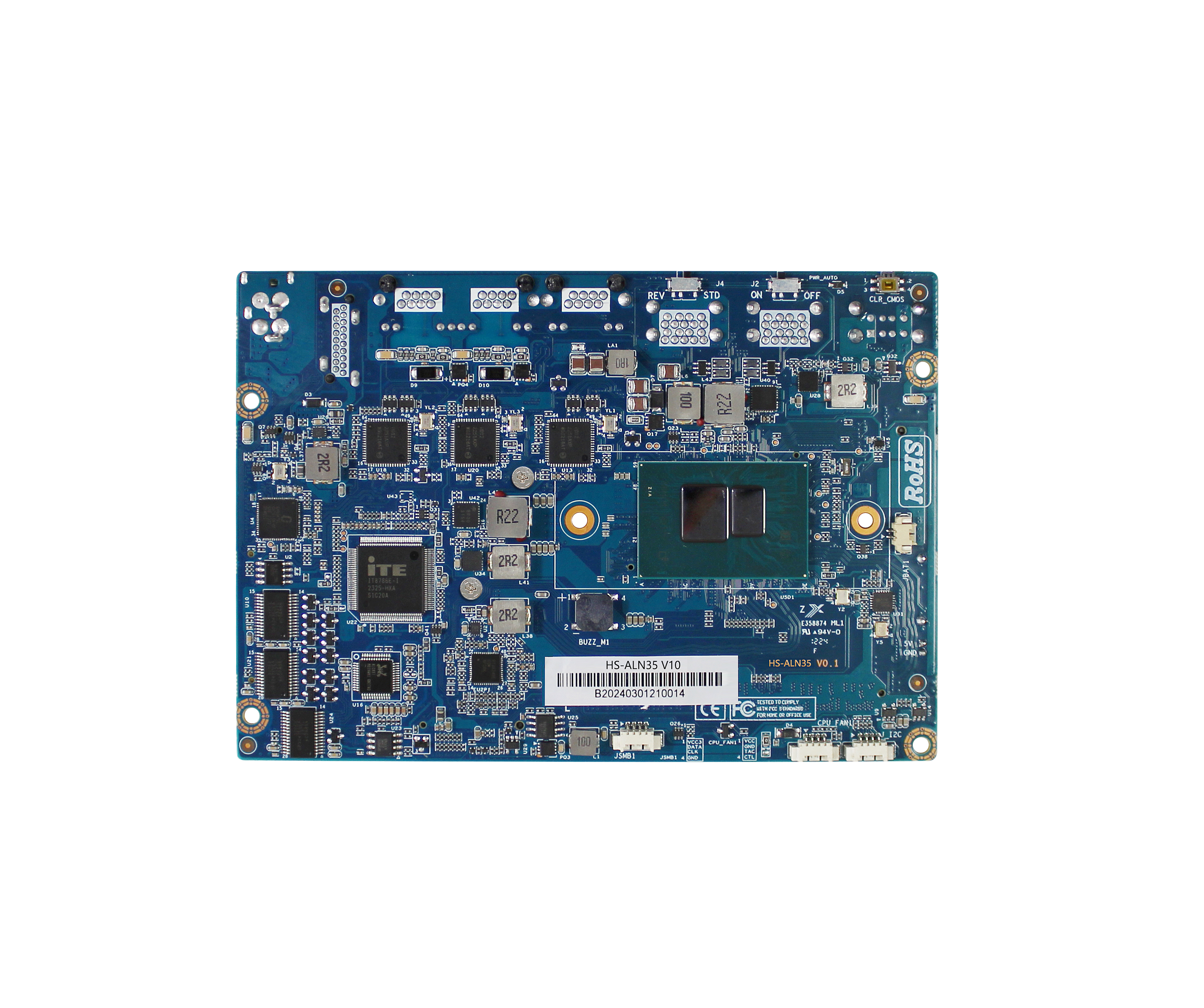

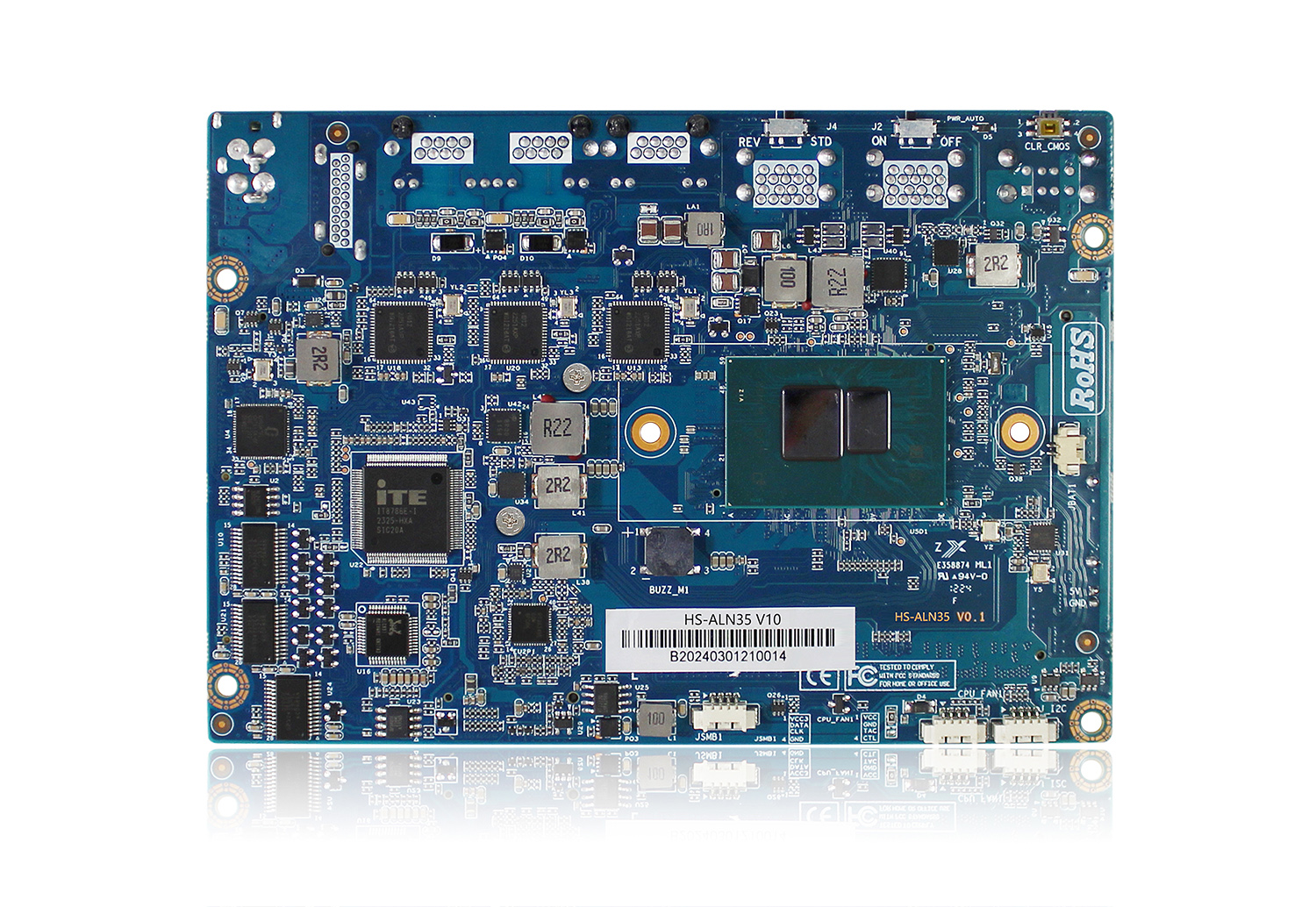

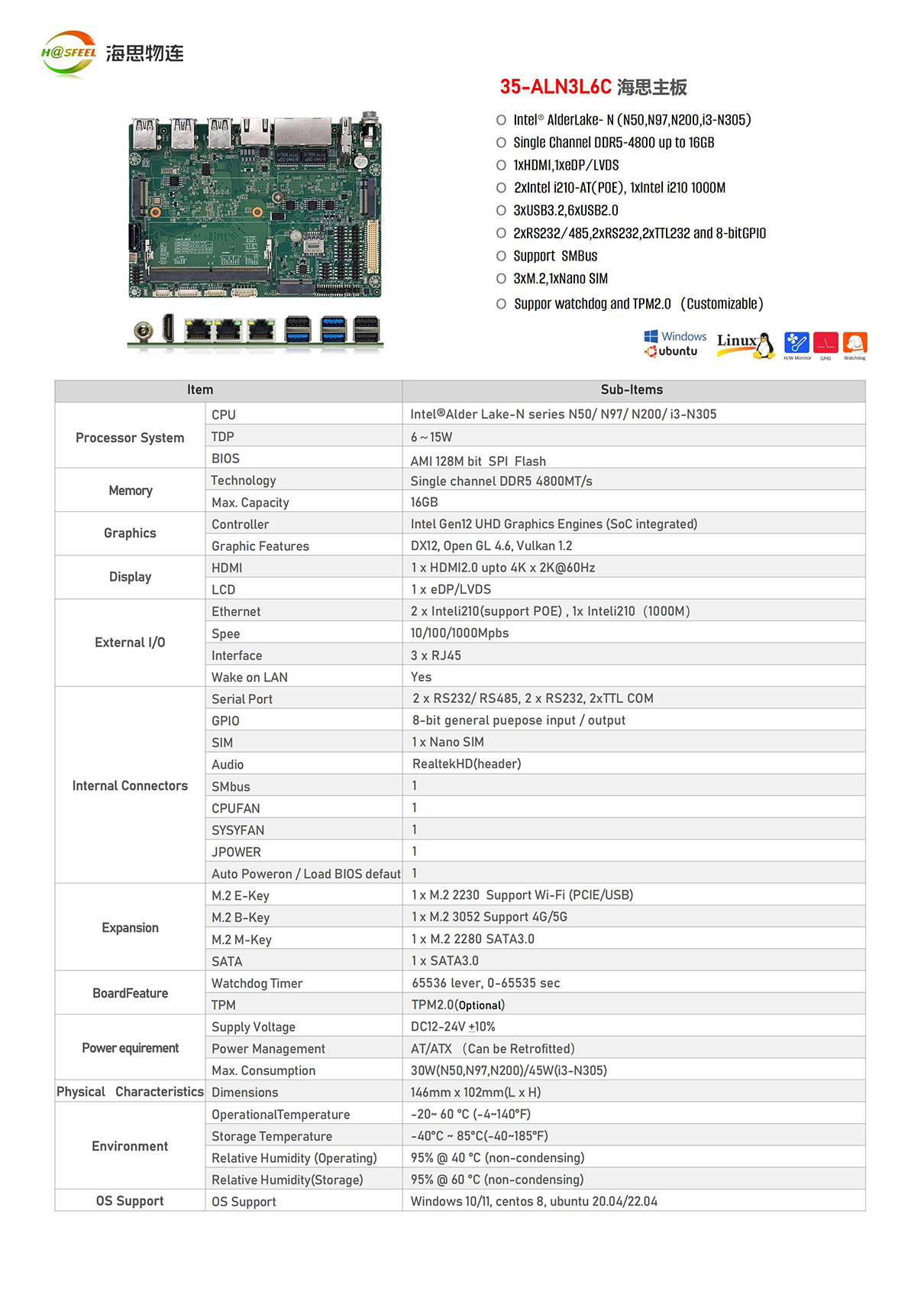

35-ALN3L6C(intel N97/N305)

Intel Alder Lake-N SeriesCPU (N50, N97, N200, i3-N305)
Single Channel DDR5 4800 MT/s SO-DIMM, max. 16GB memory

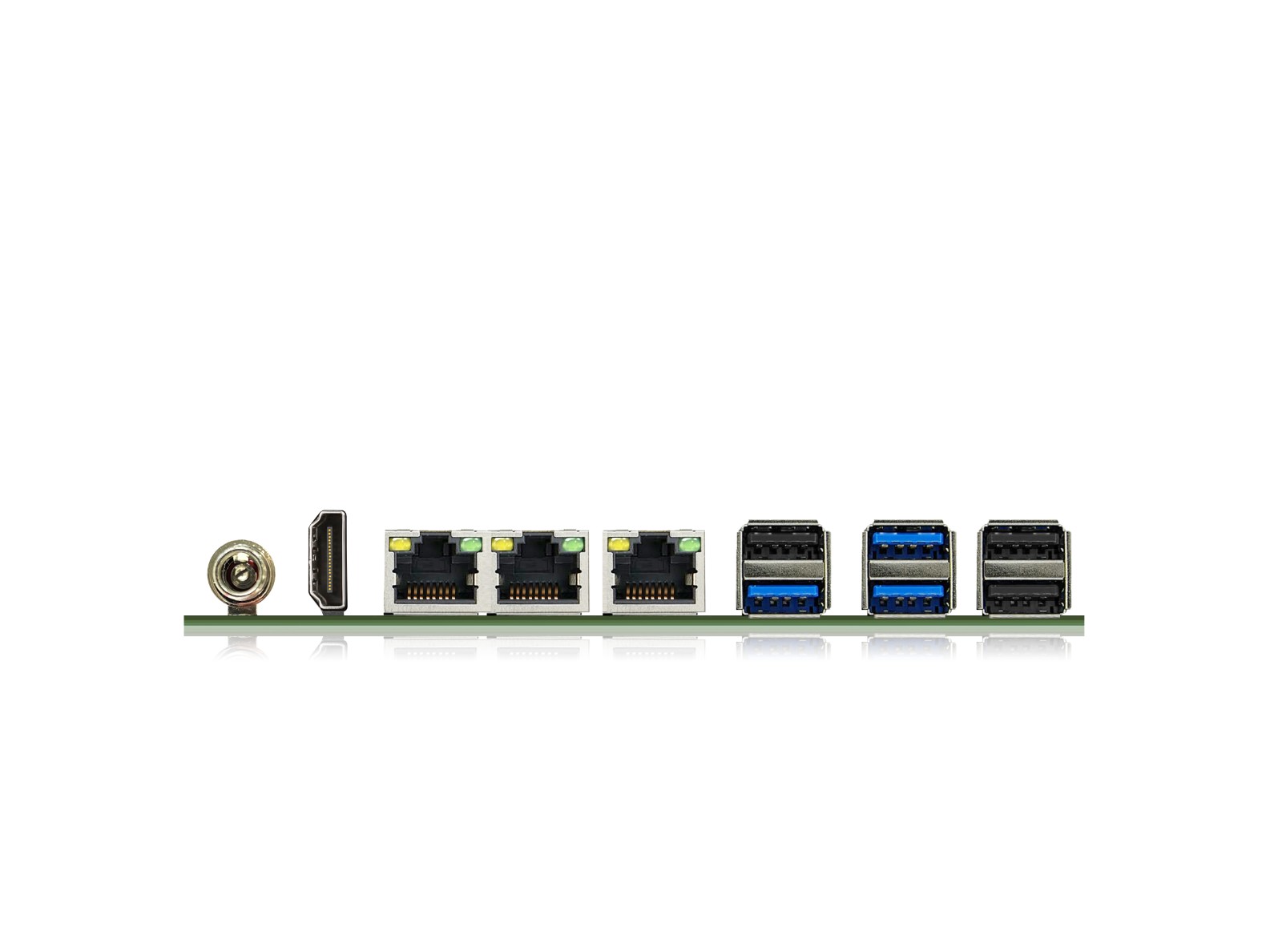

1 x HDMI, 1 x eDP/LVDS
2 x Intel i210-AT(Support POE function) 2xIntel i210 1000M
3 x USB 3.2, 6x USB 2.0
Support 2x RS232/485, 2x RS232 ,2x TTL RS232 and 8bit GPIO
Support SMBus
3 x M.2, 1 x Nano SIM
Support Watchdog and TPM 2.0
DC5525 12-24V
ESD 8KV/15KV
