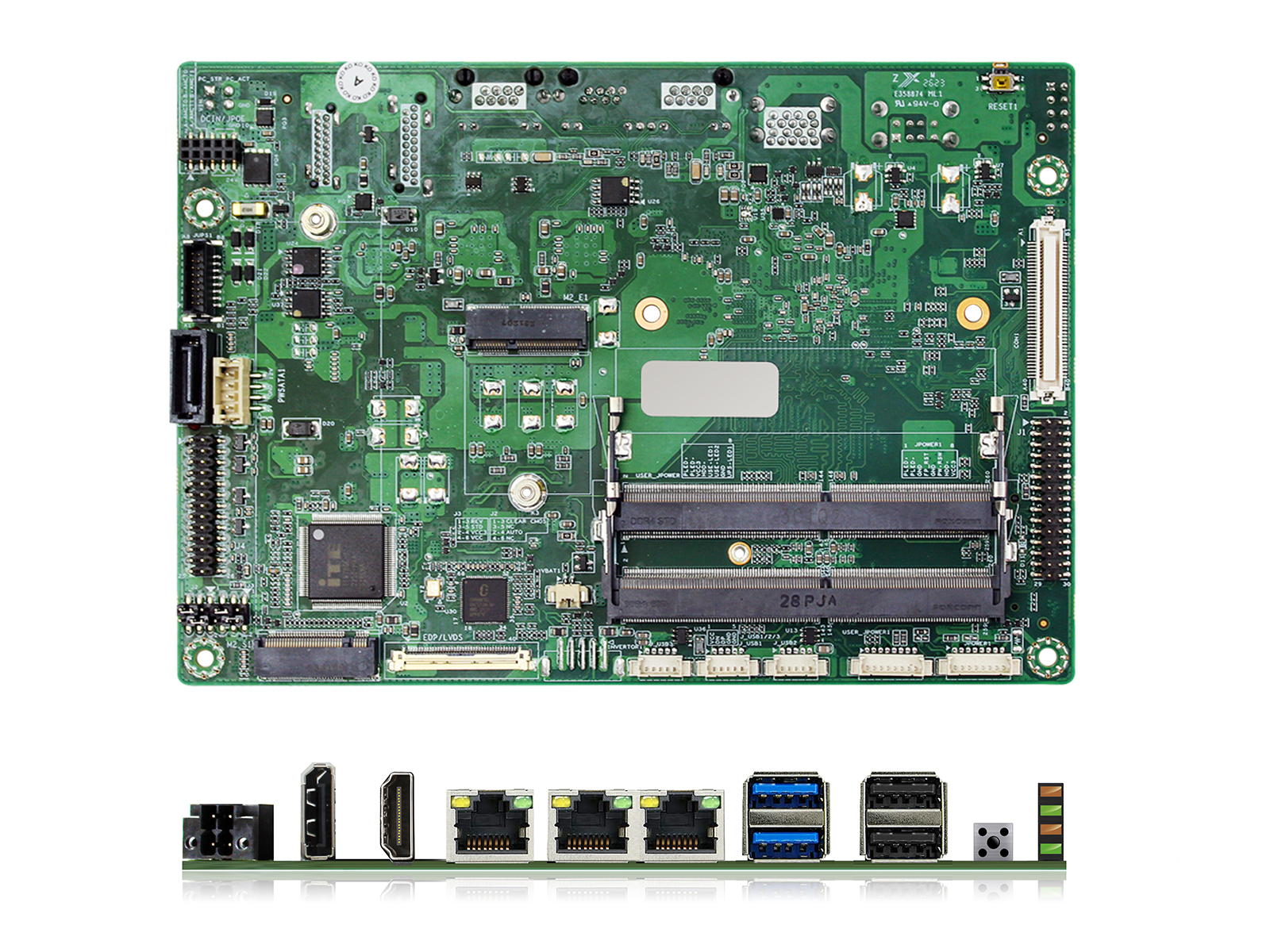

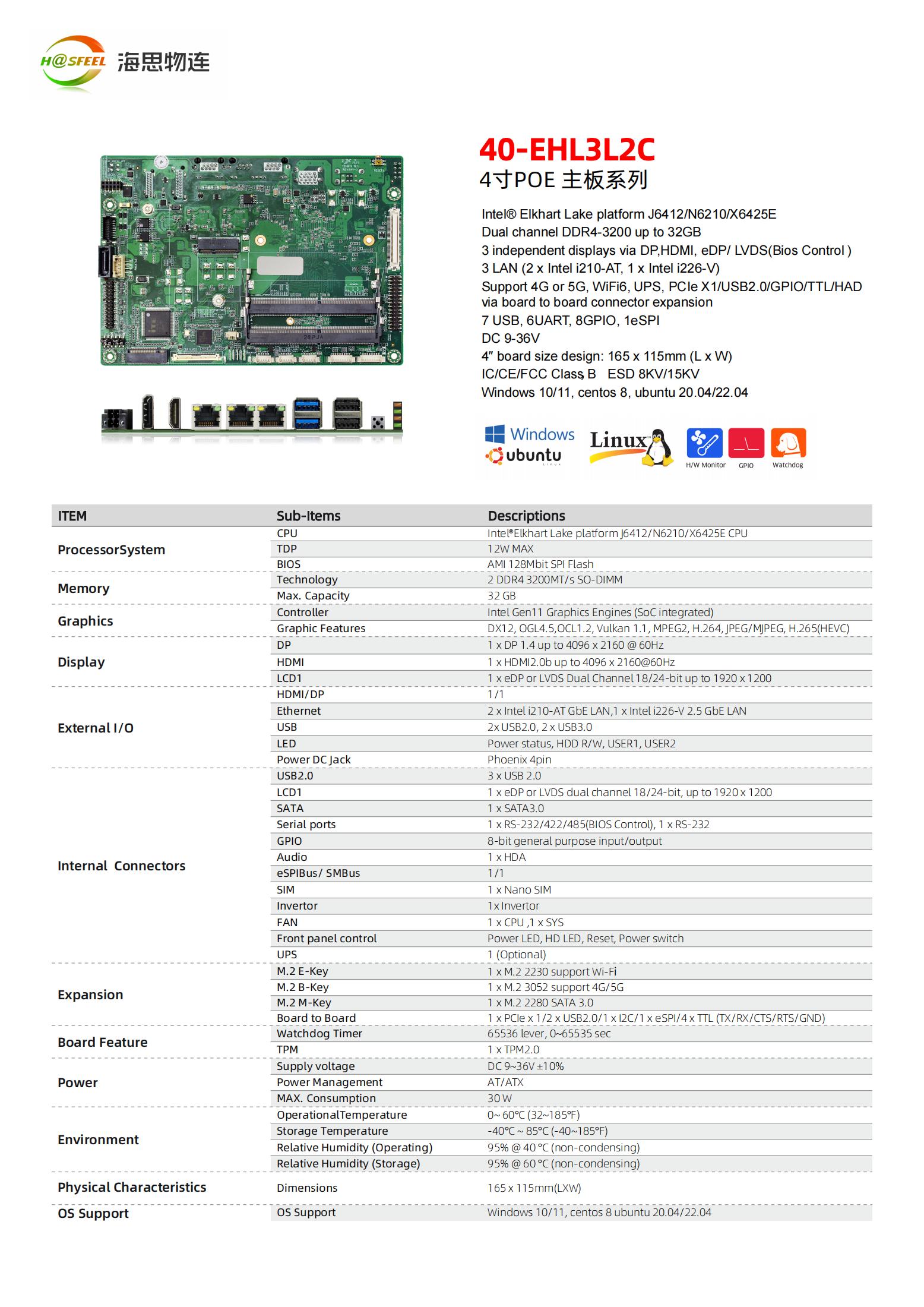

Intel Elkhart Lake 嵌入式4寸主板

• Intel Elkhart Lakeplatform J6412/N6210/X6425E
• Dual channel DDR4-3200 up to 32GB

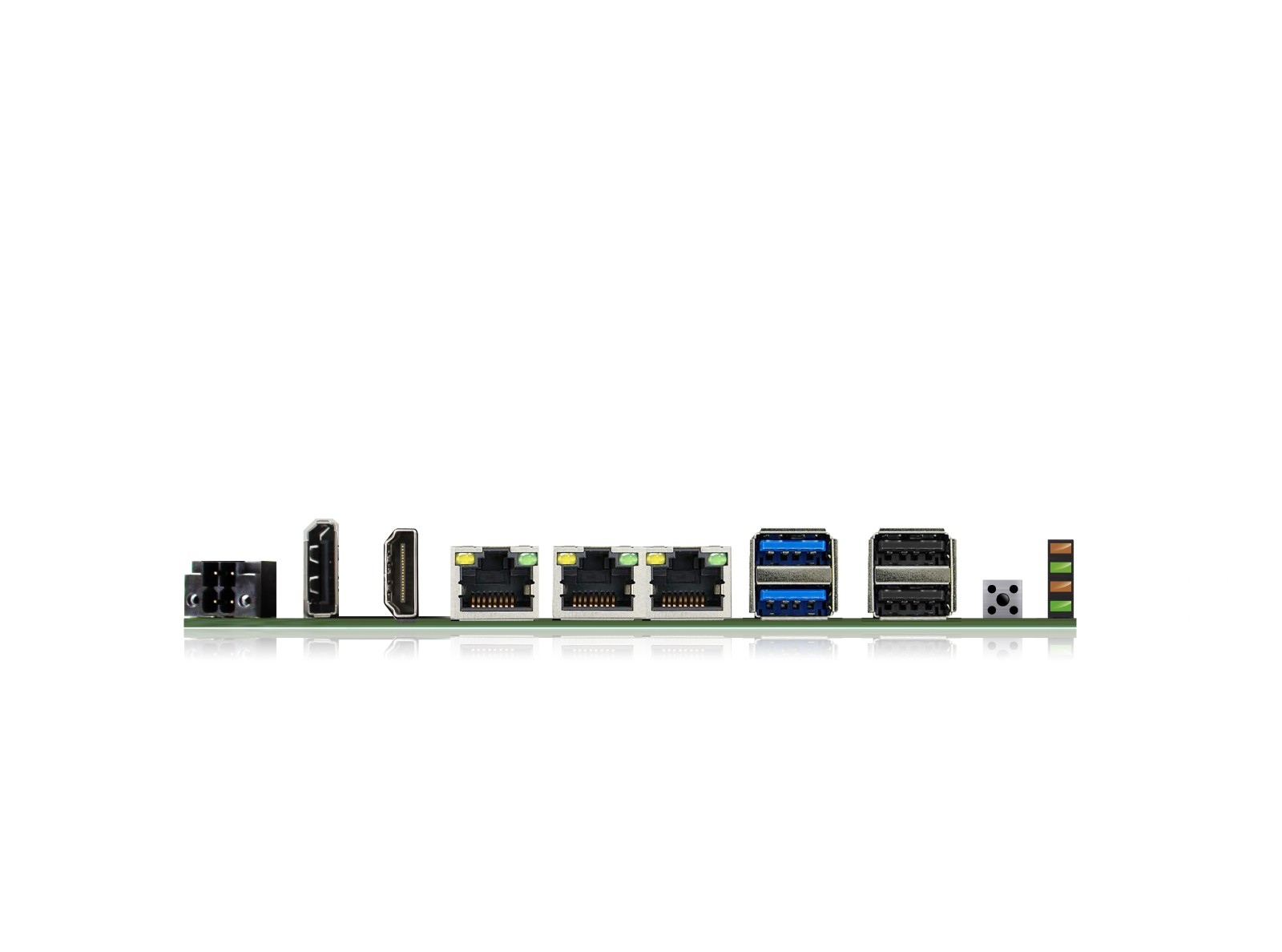

• 3 independent displays viaDP,HDMI, eDP/ LVDS(Bios Control )
• 3 LAN (2 x Intel i210-AT, 1 x Intel i226-V)
• Support 4G or 5G, WiFi6, UPS, PCIe X1/USB2.0/GPIO/TTL/HAD via board to board connector expansion
• 7 USB, 6UART, 8GPIO, 1eSPI
• DC 9-36V

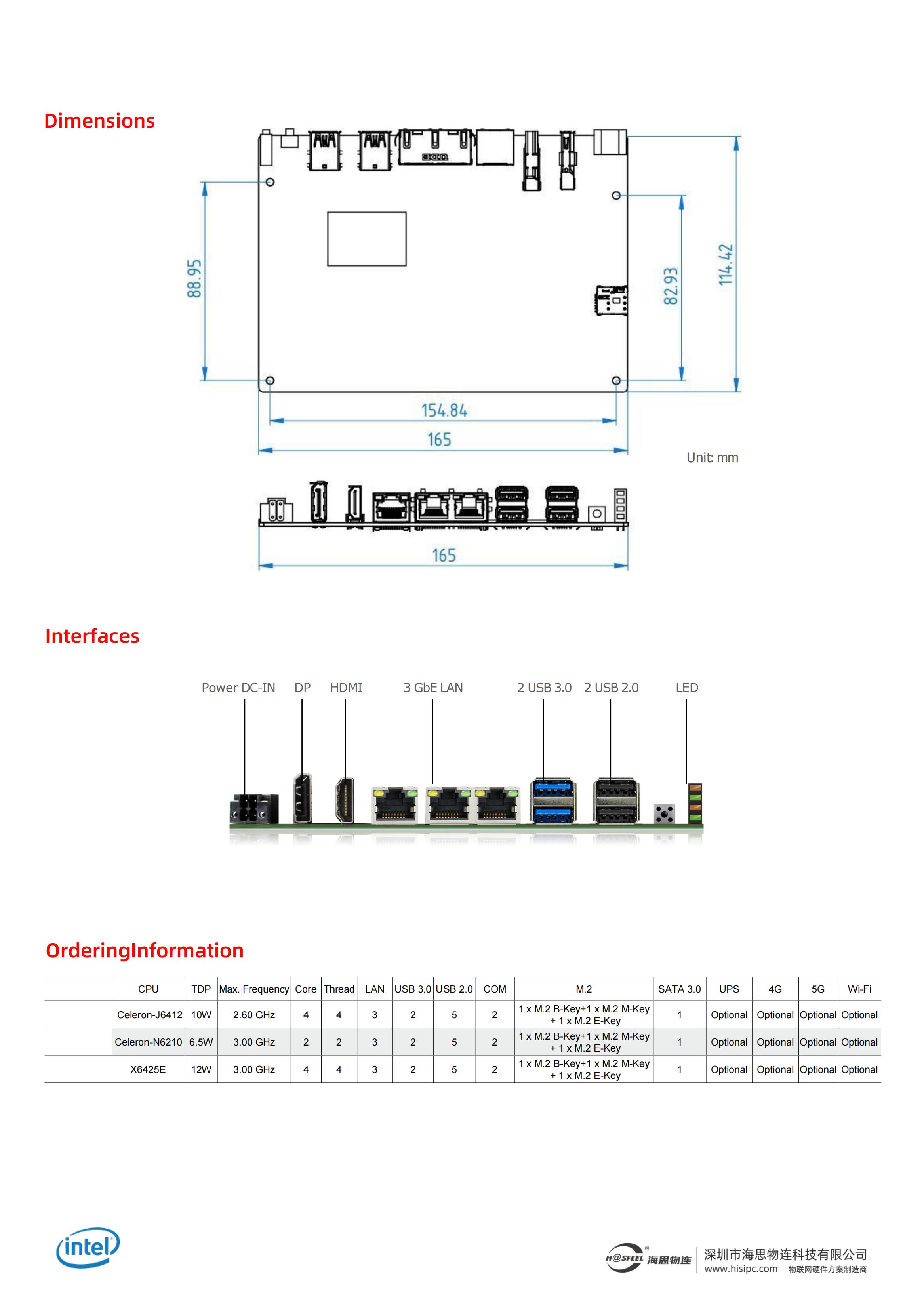

• 4″ board size design: 165 x 115mm (L x W)
• C/CE/FCC Class B ESD 8KV/15KV
• Windows 10/11, centos 8, ubuntu 20.04/22.04
