英特尔Apollo嵌入式3.5寸主板
英特尔Apollo嵌入式3.5寸主板
英特尔Apollo嵌入式3.5寸主板 英特尔Apollo嵌入式3.5寸主板

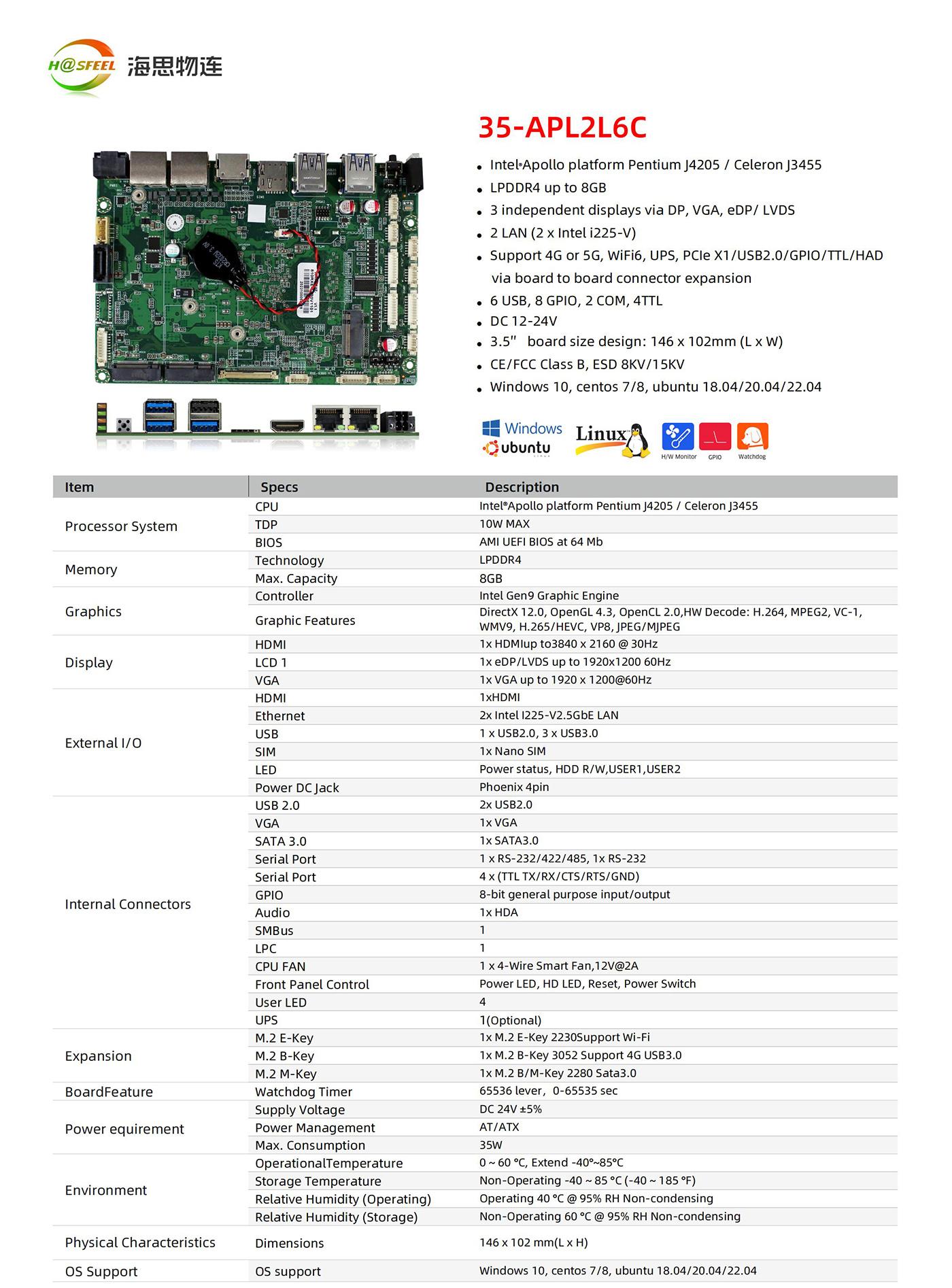

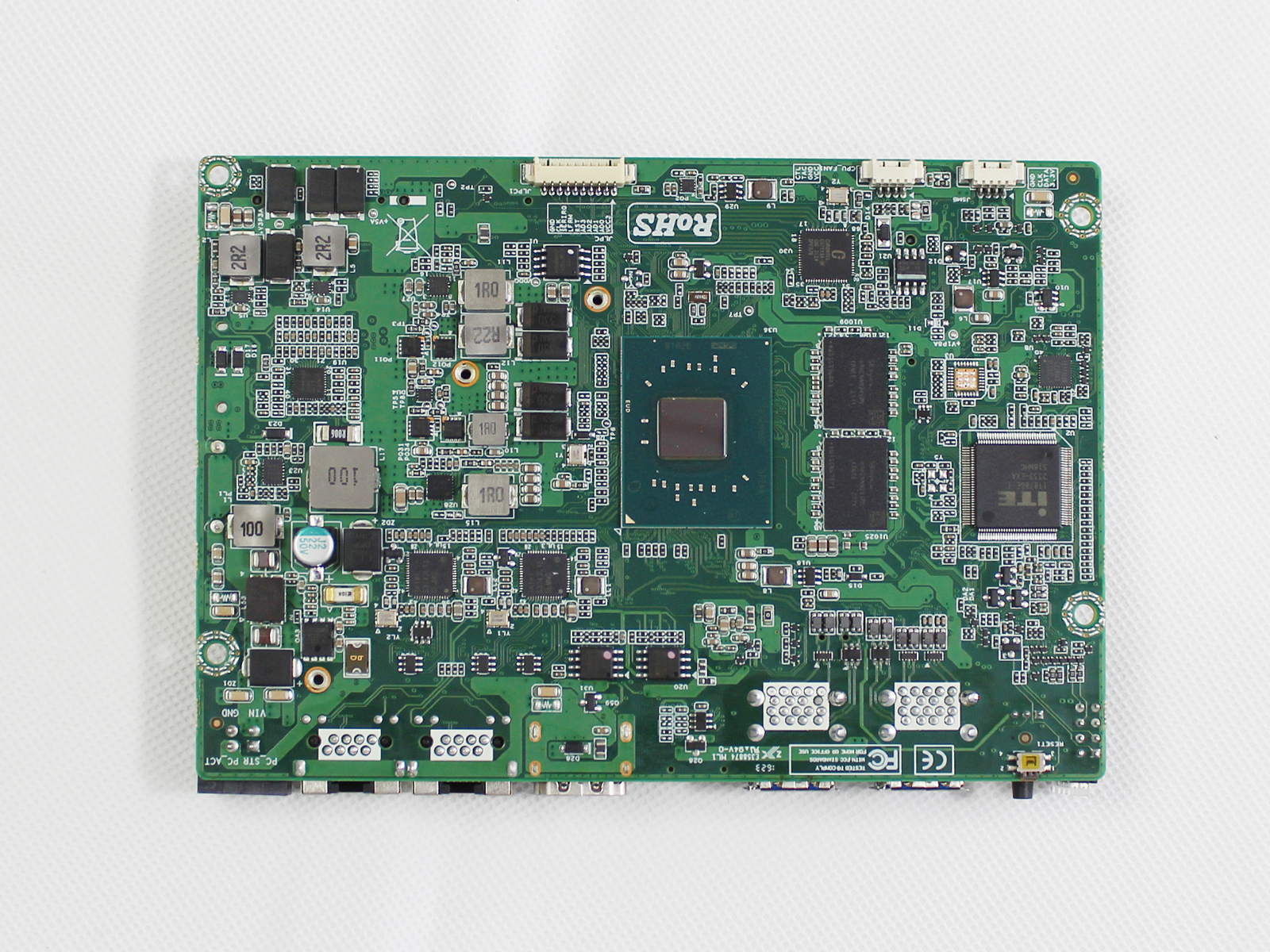

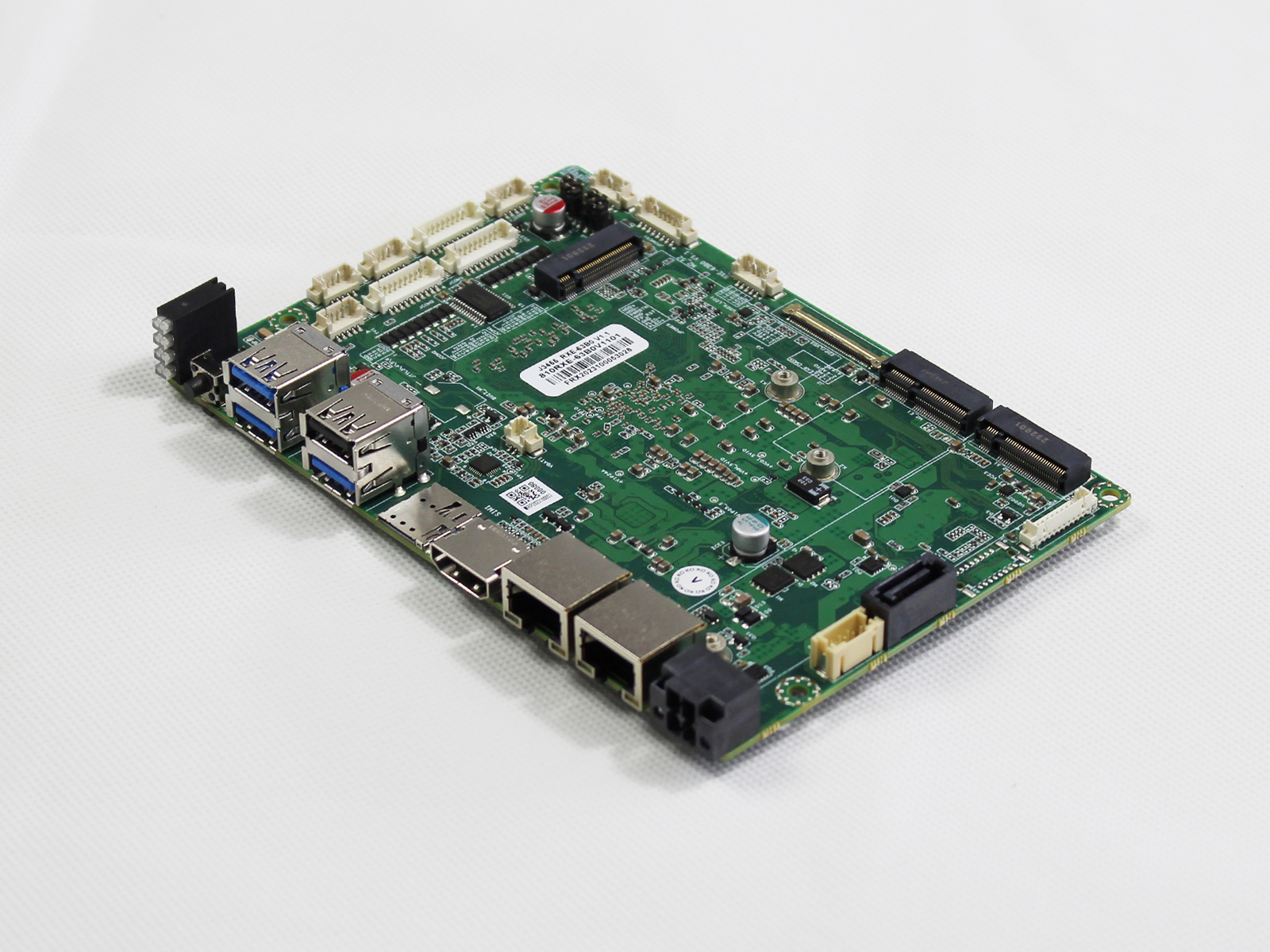

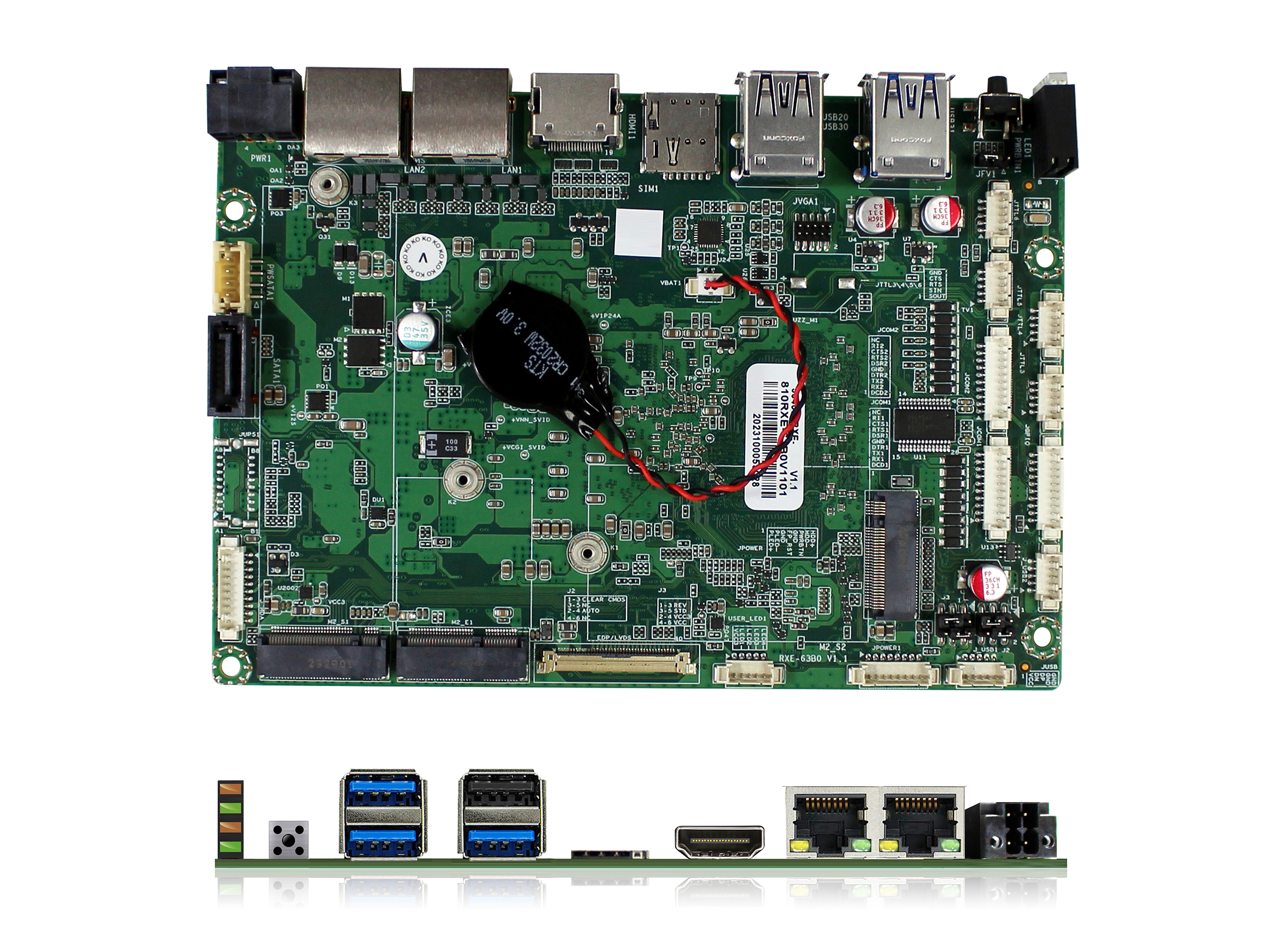

35-APL2L6C（intel J3455）
• 产品特性：
• Intel Apollo J4205/J3455
• LPDDR4 up to 8GB
• 3 independent displays via DP, VGA, eDP/ LVDS
• 2 LAN (2 x Intel i225-V)
• Support 4G or 5G, WiFi6, UPS, PCIe X1/USB2.0/GPIO/TTL/HAD via board to board connector expansion
• 6 USB, 8 GPIO, 2 COM, 4TTL
• DC 24V
• 3.5″ board size design: 146 x 102mm (L x W)
• CE/FCC Class B, ESD 8KV/15KV
• Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
• Intel Apollo J4205/J3455
• LPDDR4 up to 8GB
• 3 independent displays via DP, VGA, eDP/ LVDS
• 2 LAN (2 x Intel i225-V)
• Support 4G or 5G, WiFi6, UPS, PCIe X1/USB2.0/GPIO/TTL/HAD via board to board connector expansion
• 6 USB, 8 GPIO, 2 COM, 4TTL
• DC 24V
• 3.5″ board size design: 146 x 102mm (L x W)
• CE/FCC Class B, ESD 8KV/15KV
• Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
